DIESEL-AdBlue TANK 900 + 100 l 60 l/min 12V

ART: 090-6900-012

Composed by:

Art. 090-6900-000  Only 900 l Tank + 100 l without pump

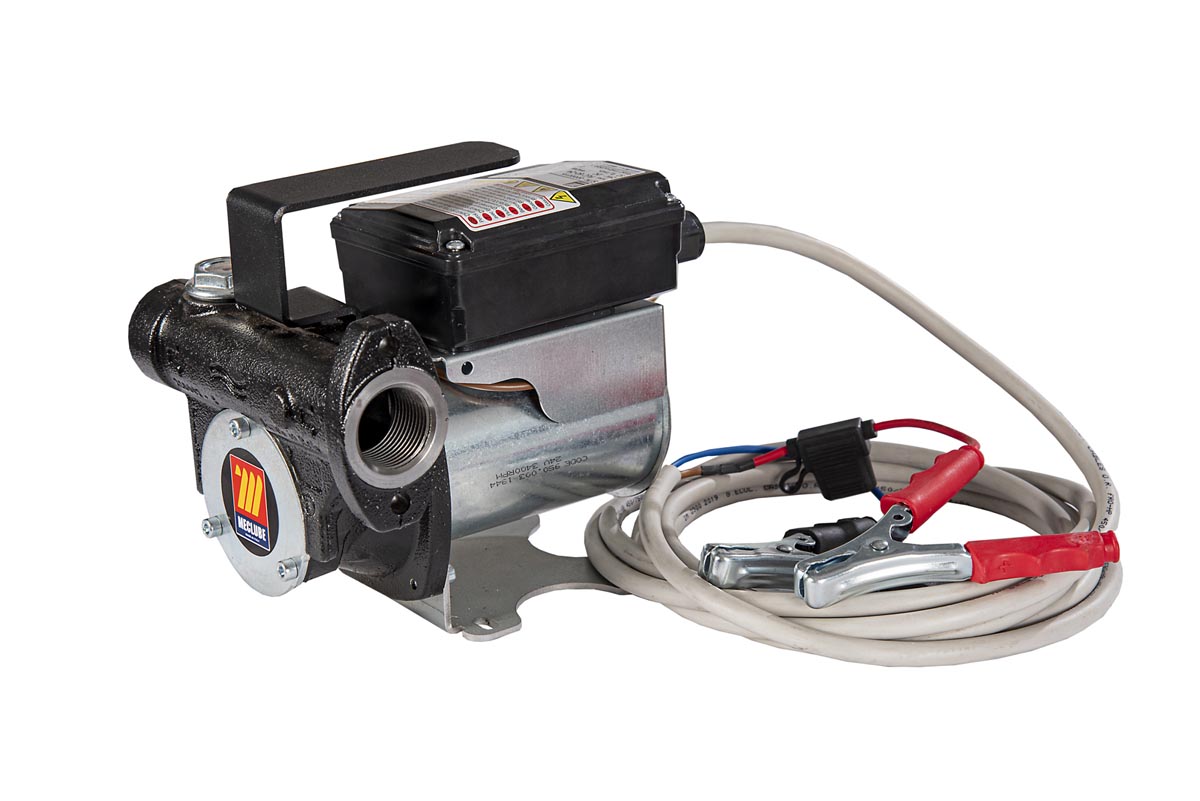

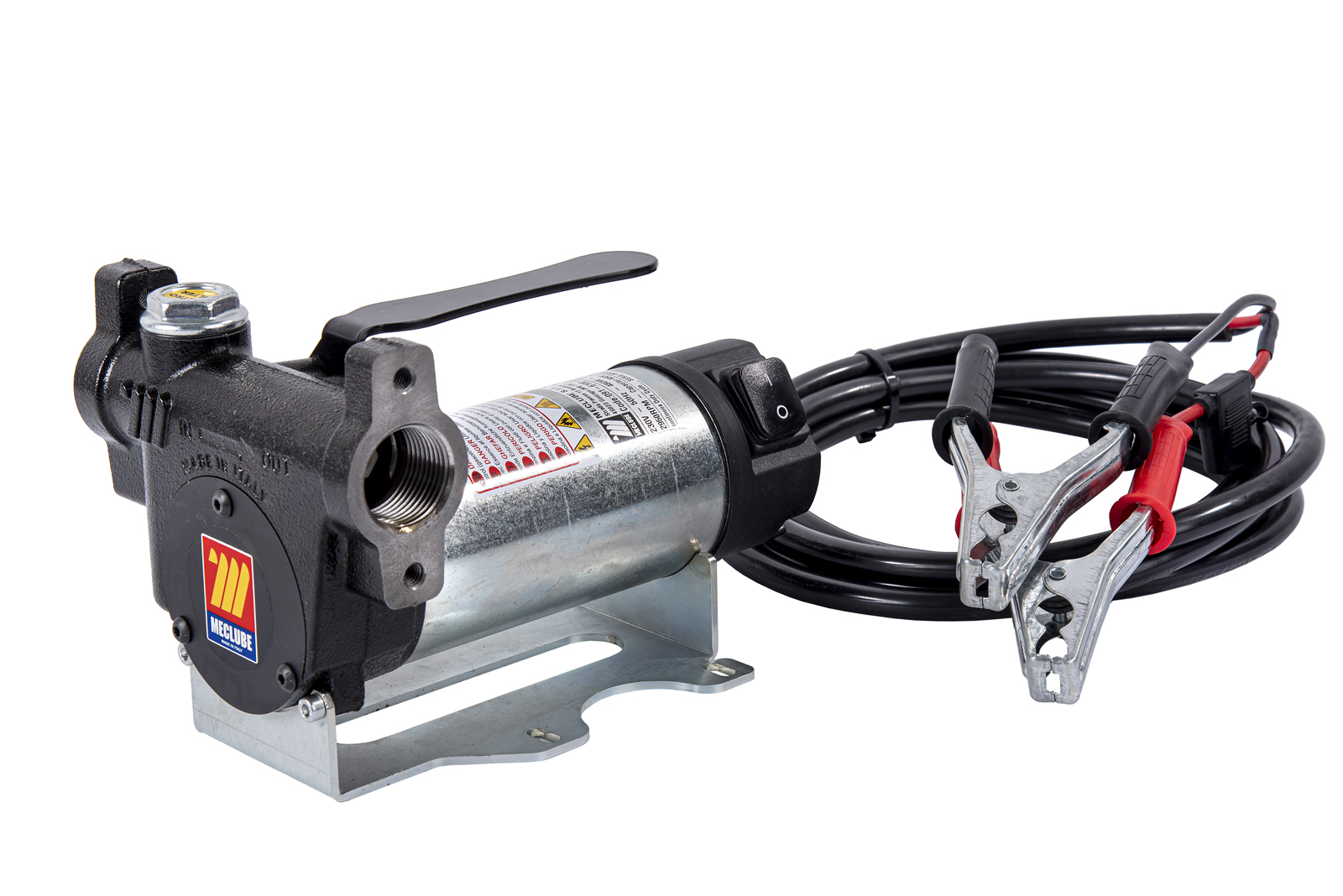

Art. 091-5081-060 12V Pump - power cable (sec. 4 mmq, 4 m lenght) with pincers and fuse - 60 l/min

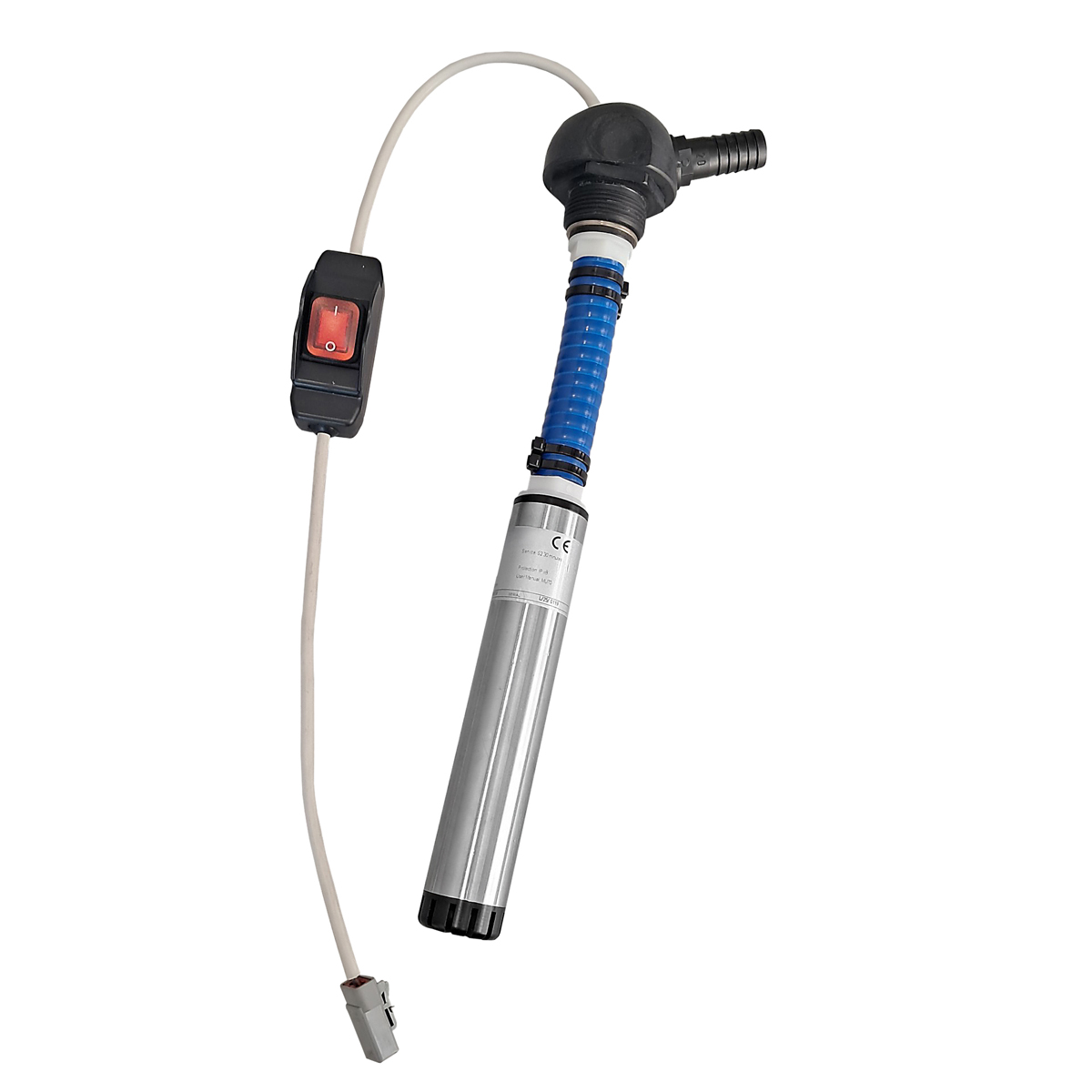

Art. 098-6000-012 AdBlue® submerged pump 12V-15 l/min power cable

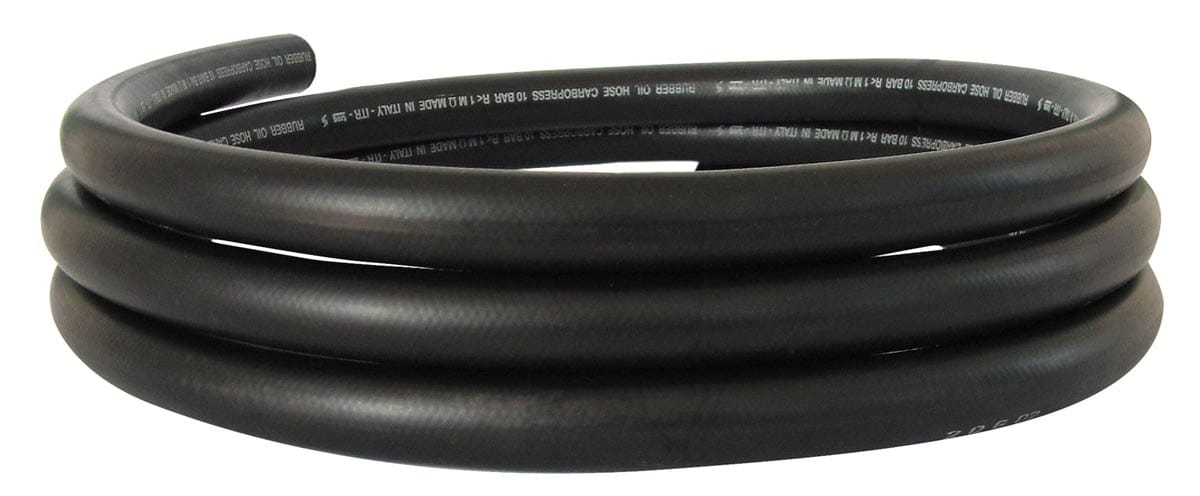

Art. 908-0516-060 Connection hose ø 20 mm M-M 1” 6 m lenght for diesel

Art. 909-0500-060 Delivery hose EPDM ø 19x29 mm M-M 6 m lenght for AdBlue®

Art. 099-5199-000 Manual plastic nozzle “AD90” Flow rate 90 l/min

Art. 093-5210-000 Automatic nozzle PA60 Flow rate 70 l/min

Components

Details

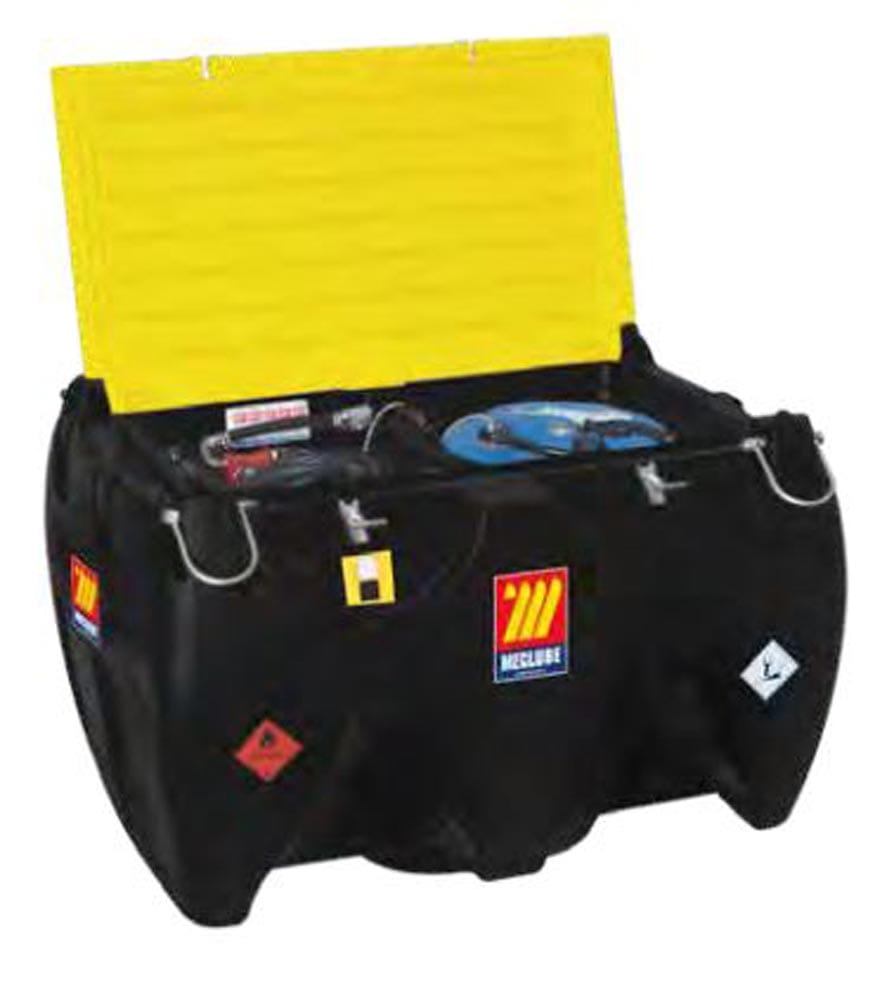

Combined tank for Diesel and AdBlue® transport for private use in total exemption for ADR (see ADR Regulation at page 180). Made of polyethylene with reinforced lockable lid. Diesel compartment with aluminium filling plug and integrated safety valve, AdBlue® compartment polyethylene plug. Complete with tank level indicator and suction filter only for diesel compartment. The tank is provided with chamfers to be lifted when it is full and grips to be lifted when empty. It is equipped with slots for positioniong the fastening belts at the support base. Diesel and AdBlue® compartments supplied with 4 m long cable with pincers for the connection to power battery supply.

Data sheet

  • Flow rate Diesel 60 l/min AdBlue 15 l/min
  • Voltage 12 AC V.Hz DC Volt
  • Power Diesel 336 W AdBlue 26W
  • Duty cycle 40 min
  • Inlet-Outlet F1" - F1" BSPG
  • Ø Connection hose Diesel 20 Adblue 19
  • Nozzle Diesel Aut.PA60 AdBlue Man.AD90
  • Packaging 1530x910x1150 mm
  • Fluid Diesel + AdBlue
