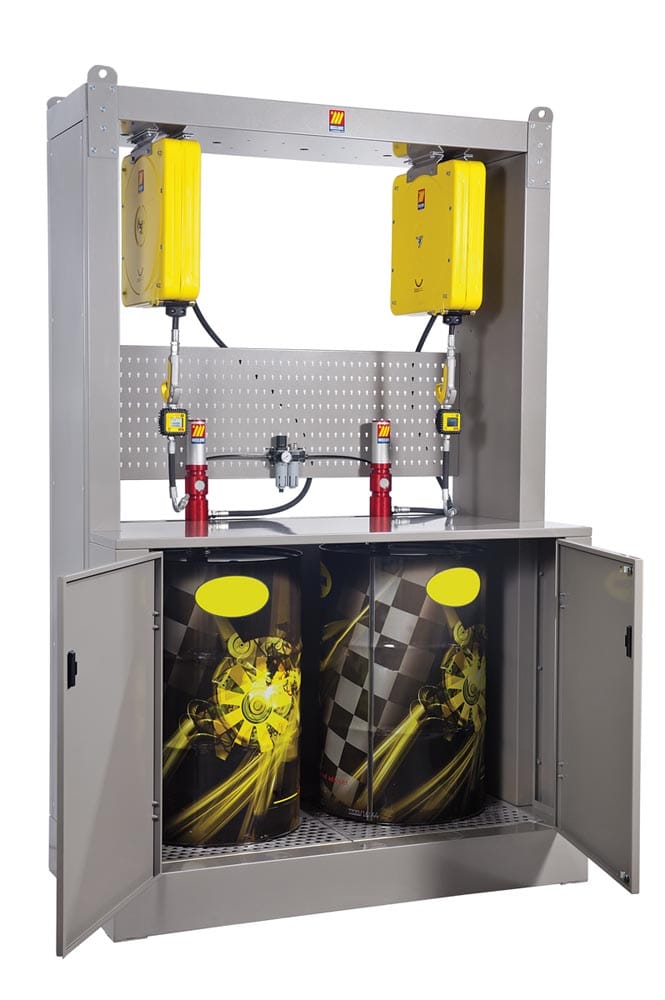

COMPLETE CABINET INSTALLATION FOR OIL DISTRBUTION FOR 2 DRUMS OF 180-220 l

ART: 023-1967-000

Composed by:

Art.023-1966-000 N.1 Frame cabinet

Art.020-1195-000 N.2 Air-operated oil pumps ratio=3:1 30 l/min

Art.074-4506-410 N.2 Closed hose reels R1 1/2” 10 m

Art.906-0424-015 N.2 1SC 1/2”hose 1,5 m length

Art.053-1537-000 N.2 Spring hose rilsan 6X8 10 m

Art.024-1233-C00 N.2 Oil digital dispensing nozzles

Art.014-1048-B00 N.1 Pressure regulator with filter, lubricator and gauge 1/2”

Details

Frame cabinet for oil distribution able to provide an autonomous operating station. They can be easily placed in every working environment (factories, garages and repair shops). Allowing clean and safe supply without wasting of lubricant oils for different uses. The base is composed by a tank of dump and stocking for 2 drums of 180-220 L as the new regulations upon. The cabinet is pre-arranged for max 4 hose reels and have a worktop of 1600X700 mm

Data sheet

  • Gross weight 392 kg
  • Net weight 377 kg
