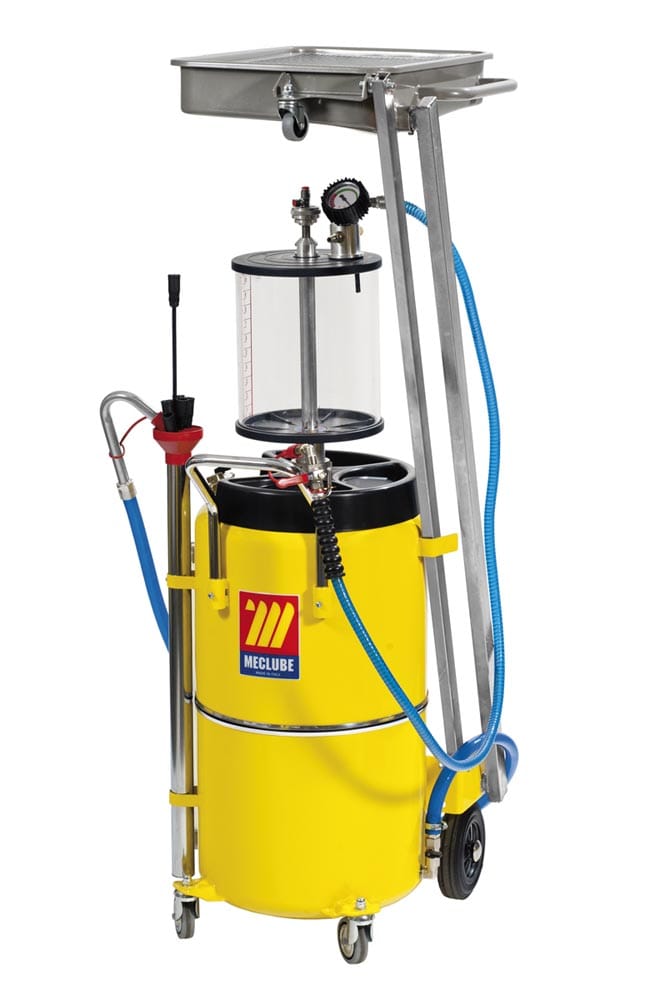

AIR-OPERATED EXHAUSTED OIL SUCTION-DRAINER WITH PANTOGRAPH 90 l

ART: 041-1455-000

Tank capacity 90 l with level indicator

Abs tool holder basin with 3 sections

Pre-chamber capacity 10 l

Recovery basin capacity 14 l on arms pantograph

with breakwater grate to drip the substituted oil filters

Pneumatic air emptying (max pressure 0,5 bar)

Equipped with 10 standard probes (Art.044-1479-000)

Details

The air-operated aspirators-suction drainers are used for the recovery of the exhausted oil by fall with tank (14 l),that can be put on the floor or lifted on lifts for vehicles. This operation can be done also through aspiration, after depressurization they work autonomously, without the need to be connected to compressed air, for an independent and quick aspiration, using the suitable probe between the included kit of 10 probes. The units can suction till 2/3 of their capacity. The pre-chamber permits the immediate control of quantity and quality of the aspirated oil, it is equipped with a device for the internal cleaning. Change the oil at a temperature of 60°- 80°C (when the engine is just switched off). Warning: do not use these units for the suction of brake oils, fuels and inflammable liquids

Data sheet

  • Gross weight 48.5 kg
  • Net weight 43.2 kg
  • Air pressure for depressurisation 7,5 – 8 bar
  • Depressurisation time 2,5’ - 3’ l/min
  • Max suction capacity with a depressurisation 60 – 65 l
  • Suction time with Ø 6 and oil at 60 – 80 °C temperature 1,5 - 2 l/min
  • Suction hose-empting – hose length 2 m
